Camera - Bus/Truck

LinksView - Commercial Grade Backup Camera - Dual

• Dual view reversing camera offers a far superior view when reversing your motorhome compared to the more common single lens reversing cameras.
  The Dual lens camera allows for one camera to cover the general area behind the vehicle while the second one can be targeted towards the bumper of the vehicle for precise viewing when approaching an obstacle or tow.

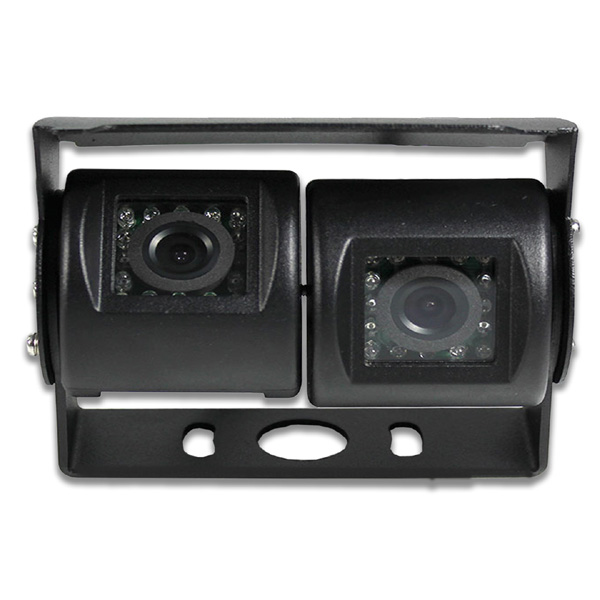

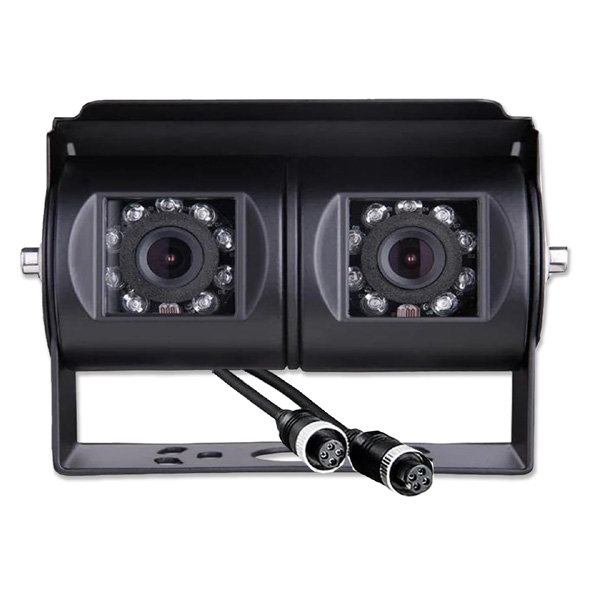

  Our Dual Lens Backup Camera comes with two CCD Lenses encased in heavy duty zinc metal.
• The camera angles are adjustable making this camera perfect to face one down at the bumper and one out at traffic.

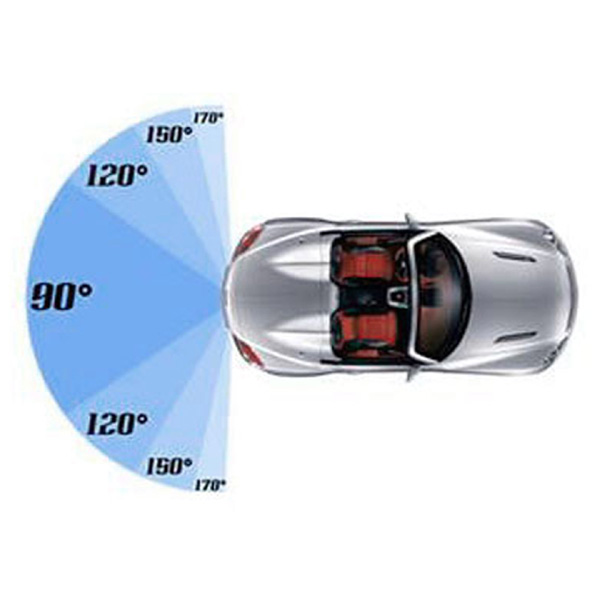

• They each have a viewing angle of 120° and 90° with 600TV lines for the image.
• The Infra-Red Lights on each camera allow vision at night up to 20ft and with its IP68 rating.

Overview:

• Camera: 1/3" CCD Sensor
• Horizontal Angle: 120°
• Vertical Angle: 90°
• Resolution: 600 TV Line
• Night Vision:  0 Lux (IR On)
• Infra-red distance: 50 Feet (18 Infrared)
• TV System: NTSC
• Video colour: Full colour
• Waterproof: IP67 - IP68

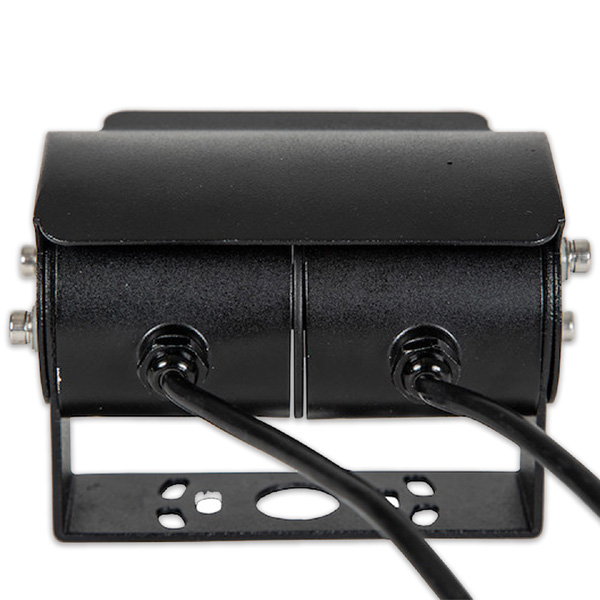

• Connector: 4 Pin connector
• Power Source: DC 12V-24V (+/- 10%)
• Current Consumption: MAX 50mA
• Operating Temperature: -40°C - 70°C / RH 95% Max
• Adjustable sun shield: Yes
• Mounting Bracket: U-shape
• Warranty: 1 Year
