Camera - Bus/Truck

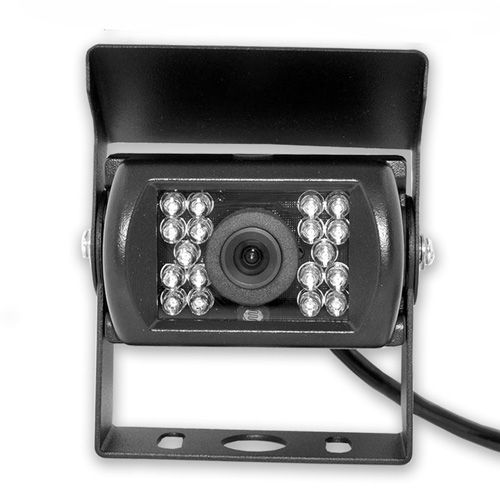

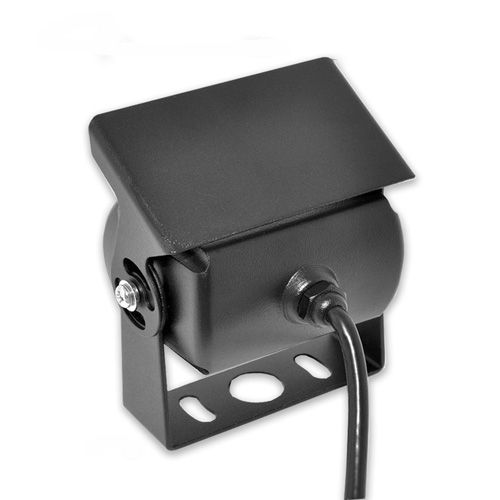

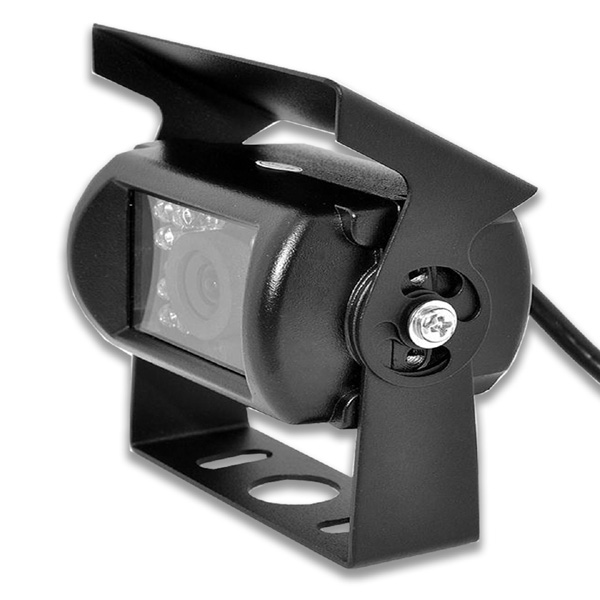

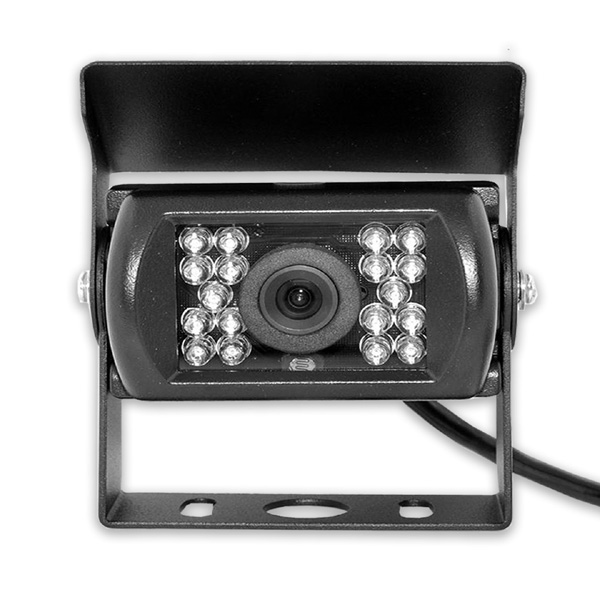

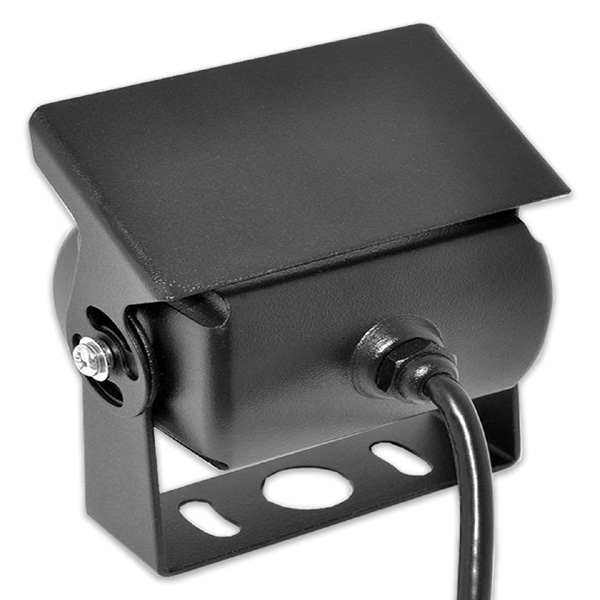

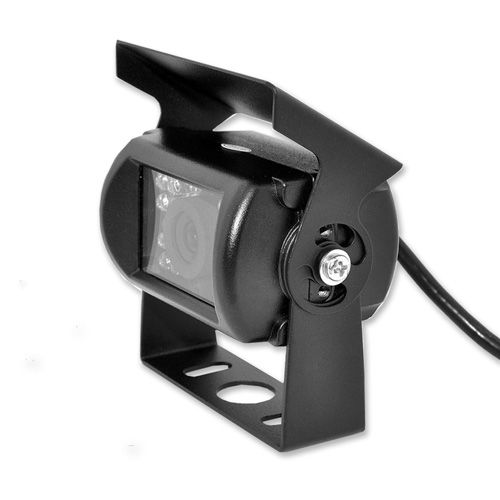

LinksView - Commercial Grade Backup Camera

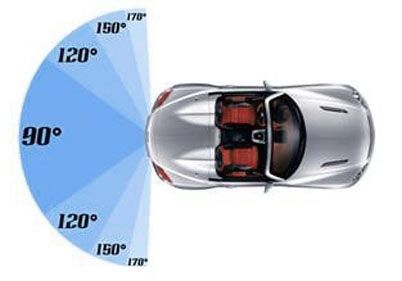

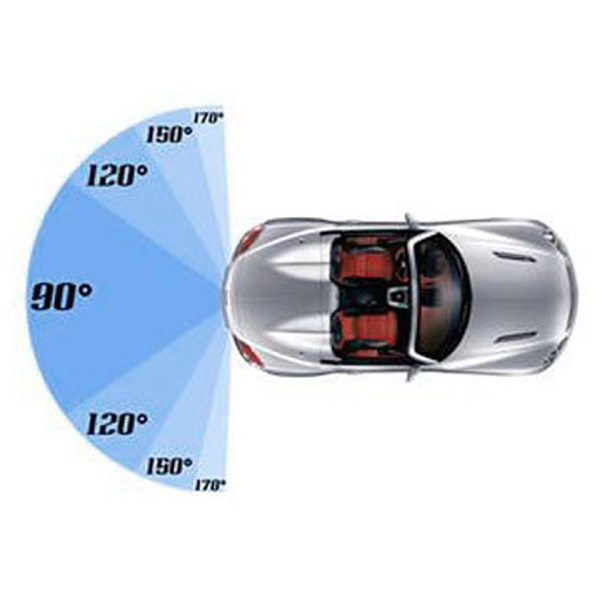

• Get assistance when backing up large utility vehicles. this heavy-duty Commercial Grade Backup Camera delivers a clear 140° view behind your truck or van without the interference of utility boxes, tools, or cargo.
• This clean OEM look can attach anywhere on the back of the vehicle. Suitable for use with buses, semi-trucks, cargo vans, motor-homes etc.

Overview:

• Camera: 1/3" CMOSI
• Horizontal Angle: 120°
• Vertical Angle: 90°
• Resolution: 580 TV Line
• Night Vision:  0 Lux (IR On)
• Infra-red distance: 50 Feet (18 Infrared)
• mage Sensor: 620 TV lines NTSC: 811 (H) *507 (V)
• TV System: NTSC
• Video colour: Full colour
• Waterproof: IP67 - IP68
• Connector: 4 Pin connector
• Power Source: DC 12V-24V (+/- 10%)
• Current Consumption: MAX 50mA
• Operating Temperature: -40°C - 70°C / RH 95% Max
• Adjustable sun shield: No
• Mounting Bracket: U-shape
• Adjustable sun shield: Yes
• Warranty: 1 Year
