RAM 2019-2024 w/8.4" OEM Radio, DDIN L Shape Radio Dash Kit

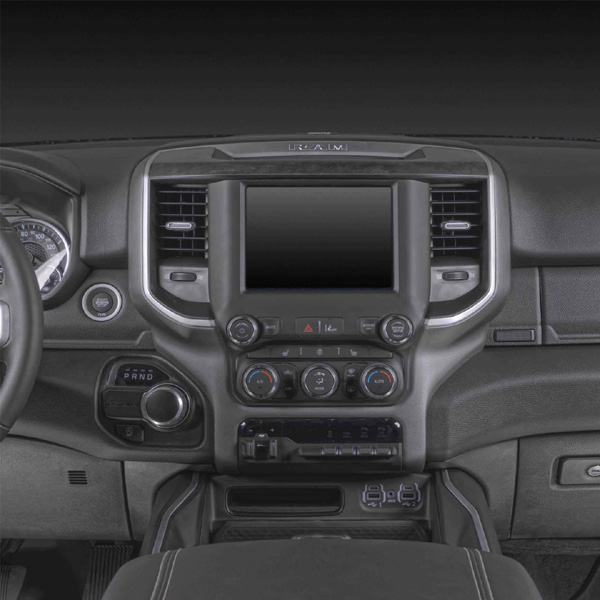

- The 107-CH6B is designed to fit 2019-2024 RAM trucks.
- This dash kit is designed to install shallow-mount, modular, or L-shaped radios with the chassis at the bottom of the screen.
- A full-size Double-DIN installation will require extensive sub-dash modifications.
- The 107-CH6B is painted scratch-resistant matte black to complement the factory dash. Installing an aftermarket radio can improve sound quality and offer additional features the factory radio didn’t have, but a dash kit is required to ensure it fits.

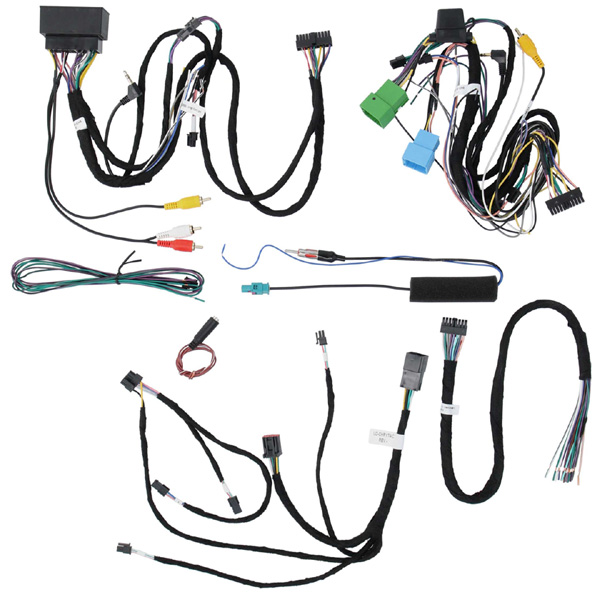

- This dash kit simplifies radio replacement and includes a built-in Axxess® data interface, wiring harnesses, and an antenna adapter for a complete installation.
- Stereo installation kit designed to fit aftermarket shallow-mount, modular, or “L” shaped radios with the chassis at the bottom of the screen
- Painted scratch-resistant matte black to match the factory finish
- Steering wheel audio controls and factory climate controls are retained
- Factory-style hard buttons with laser-etched graphics are included to retain and control functions that are usually lost when removing the factory radio
- Axxess® interface is built into the built-in OLED screen
- Built-in OLED screen displays the visual status of climate functions
- Made from the highest quality ABS plastic for an original factory-like fit and finish
- Includes antenna adapter and hardware parts needed, with detailed installation instructions
- A tech support number is available for installation help, 7 days a week
- 1-year limited warranty
- Sub-dash modifications are required for the installation of a Double-DIN radio, and once the changes are made, the vehicle will no longer be able to be restored to the factory setup
Axxess Interface:
- Designed for amplified or non-amplified models
- Provides accessory power (12-volt 10-amp)
- Retains R.A.P. (retained accessory power)
- Provides illumination, parking brake, reverse, and speed sense outputs
- Retains audio controls on the steering wheel
- Allows retention and adjustment of the personalization options
- Retains safety chimes
- Retains the factory AUX-IN jack (base models only)
- Retains balance and fade*
- Micro-B USB updatable
- *Non-amplified models only
- Note: Excludes the Classic model.
